Aral Plus C-3000 (AstralPool) | 7.5HP 400/690 50hz | Code 76925

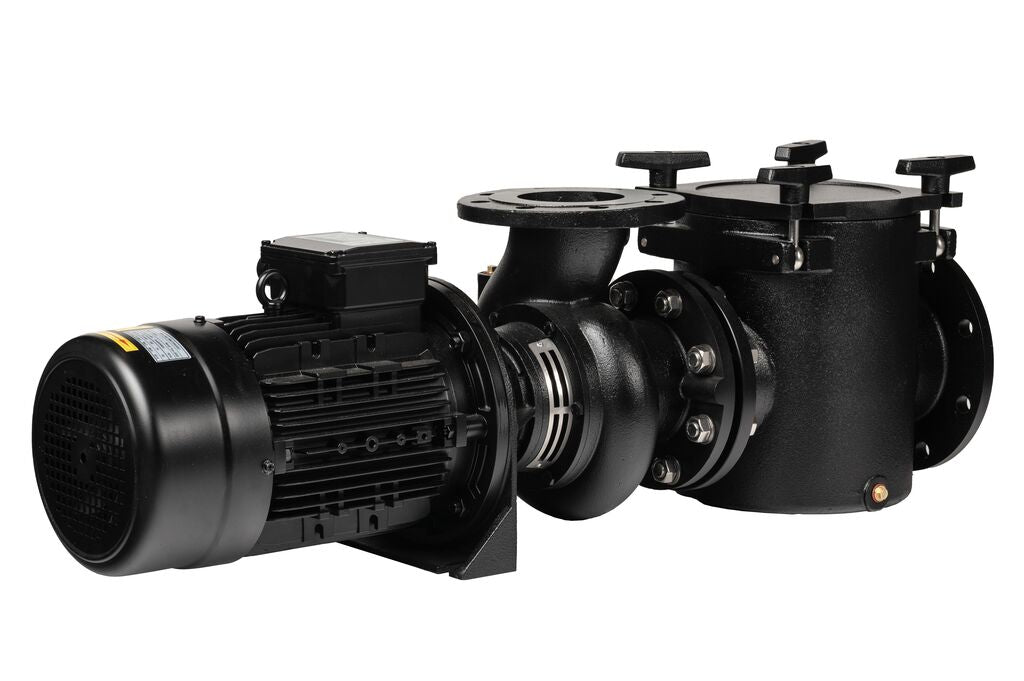

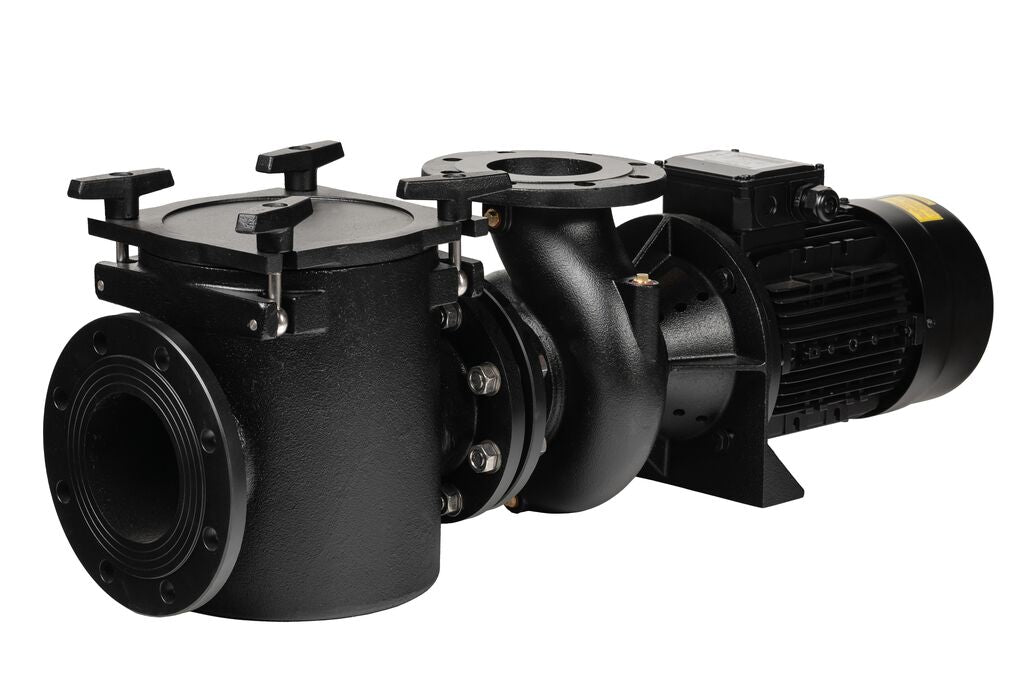

AstralPool ARAL PLUS C-3000 Commercial Pool Pump – 7.5 HP (Code 76925)
The AstralPool ARAL PLUS C-3000 is a heavy-duty commercial centrifugal pump engineered for public swimming pools, aquatic facilities, and large-scale water circulation systems. Built with a rugged cast iron housing and bronze impeller, this pump delivers exceptional reliability, corrosion resistance, and long service life in demanding operating environments.
Designed for continuous-duty performance, the ARAL PLUS C-3000 features a high-efficiency 2-pole motor operating at 3000 RPM and incorporates AstralPool's cataphoresis treatment process to provide superior protection against corrosion and oxidation.
Key Features
- 7.5 HP (5.5 kW) commercial centrifugal pool pump
- Heavy-duty cast iron pump housing
- Bronze impeller for enhanced durability
- Stainless steel AISI 316L shaft
- Carbon and ceramic mechanical seal
- Cataphoresis corrosion-resistant treatment
- IP55 motor protection
- High-efficiency 2-pole motor operating at 3000 RPM
- Designed for public pools and commercial aquatic applications
- Flow capacity up to 180 m³/h across the ARAL PLUS C-3000 series
Specifications
| Manufacturer | AstralPool |
| Series | ARAL PLUS C-3000 |
| Code | 76925 |
| Power | 7.5 HP (5.5 kW) |
| Voltage | 400/690V, 3-Phase, 50Hz |
| Suction Connection | 125 mm |
| Discharge Connection | 100 mm |
| Pump Housing | Cast Iron |
| Impeller | Bronze |
| Shaft Material | AISI 316L Stainless Steel |
| Mechanical Seal | Carbon / Ceramic |
| Protection Rating | IP55 |
Applications
- Commercial swimming pools
- Municipal aquatic centers
- Water parks
- Competition pools
- Large-scale filtration and recirculation systems
- Industrial water circulation applications
The ARAL PLUS C-3000 combines robust construction, high hydraulic efficiency, and superior corrosion protection to provide dependable operation in the most demanding commercial pool environments.
