CS400IR-8EC6 (Fisher) 1-1/4-Inch Commercial LP Gas Regulator, 6.8M BTU | 10–14 Inches WC

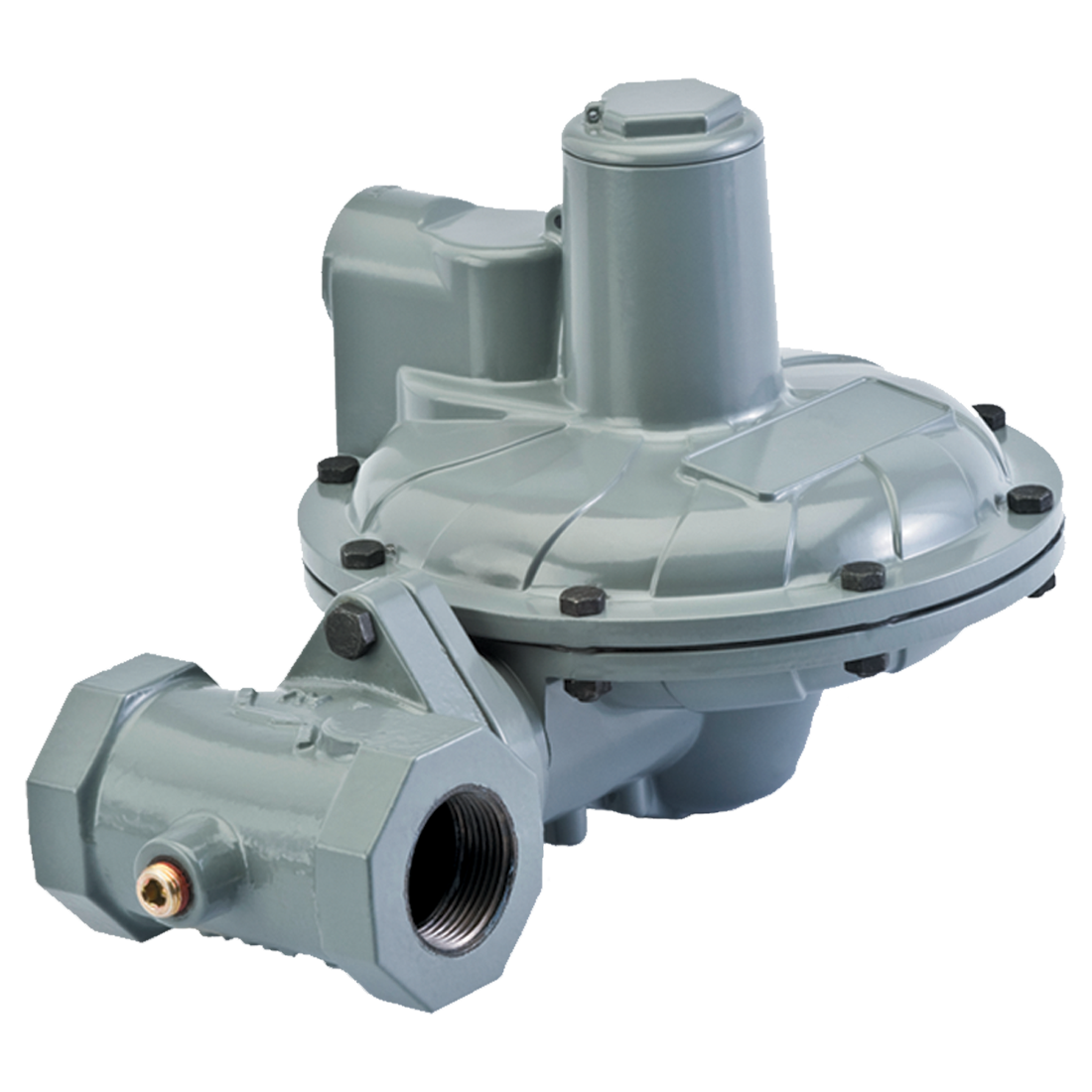

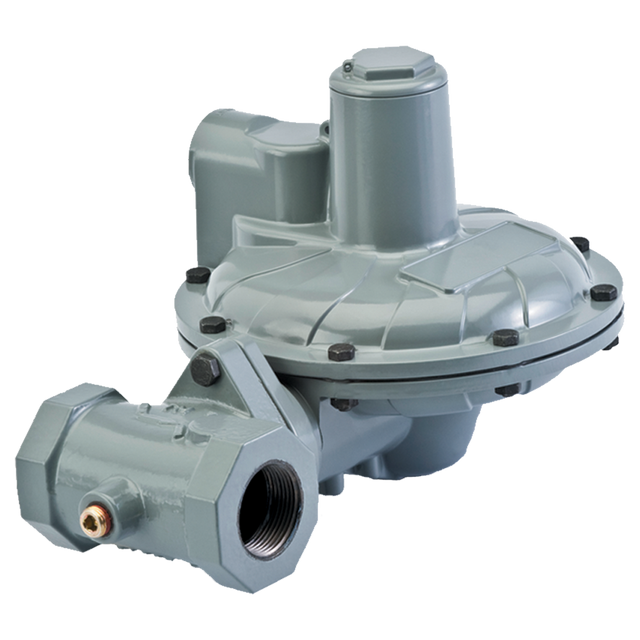

Fisher CS400IR-8EC6 Commercial LP Gas Pressure Regulator

The Fisher CS400IR-8EC6 is a high-capacity commercial LP gas pressure regulator designed for commercial and light industrial propane applications. This CS400 Series regulator provides dependable pressure reduction with a capacity of up to 6,800,000 BTU/hr.

The CS400IR-8EC6 features 1-1/4" FNPT inlet and outlet connections, a 3/4" orifice, and an 11" W.C. factory outlet pressure setting. Outlet pressure is adjustable from 10–14" W.C., allowing the regulator to accommodate a variety of commercial propane system requirements.

Features

• High-capacity commercial LP gas regulator

• Up to 6,800,000 BTU/hr propane capacity

• 1-1/4" FNPT inlet x 1-1/4" FNPT outlet

• 11" W.C. factory outlet pressure setting

• Adjustable 10–14" W.C. outlet pressure range

• 20 PSIG maximum operating inlet pressure

• 3/4" orifice

• Internal pressure registration

• High-capacity internal relief

• Direct-operated, spring-loaded design

• Designed for commercial and light industrial propane applications

• Genuine Fisher CS400 Series regulator

Specifications

Manufacturer: Fisher
Model / Part Number: CS400IR-8EC6
Series: CS400
Gas Service: LP Gas / Propane
Inlet Connection: 1-1/4" FNPT
Outlet Connection: 1-1/4" FNPT
Capacity: 6,800,000 BTU/hr
Capacity Rating Condition: 10 PSIG inlet pressure, 2" W.C. droop
Orifice Size: 3/4"
Outlet Pressure Setting: 11" W.C.
Outlet Pressure Range: 10–14" W.C.
Maximum Operating Inlet Pressure: 20 PSIG
Pressure Registration: Internal
Regulator Type: Direct-Operated, Spring-Loaded
Application: Commercial and Light Industrial LP Gas Systems

Always verify regulator sizing, capacity, inlet pressure, outlet pressure and connection requirements for the intended application before installation.
