Ion Technologies | SKU:
M5000A4107

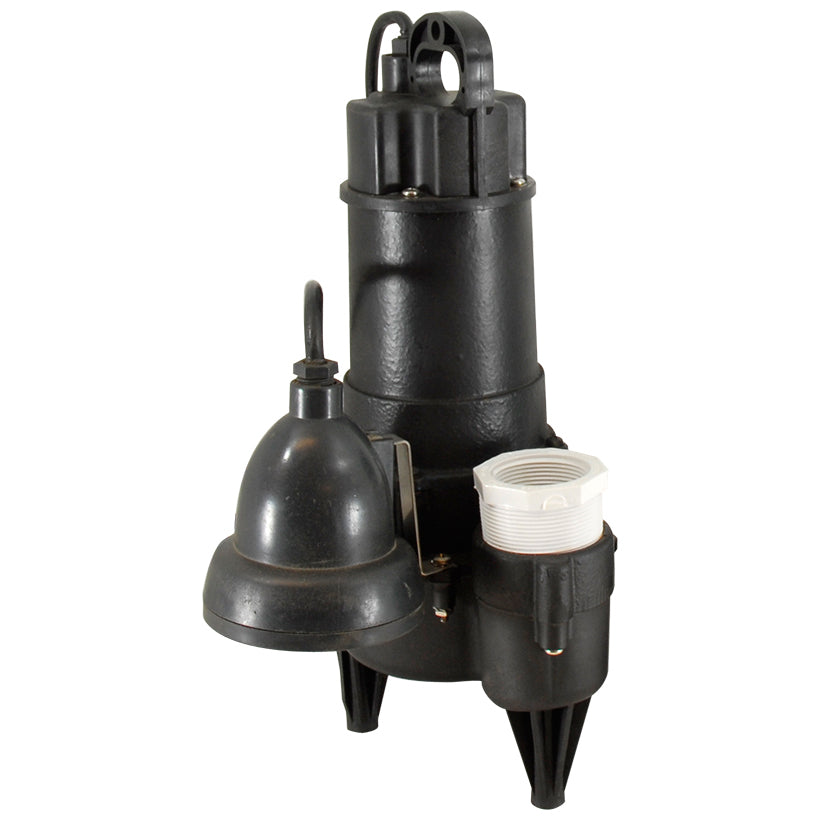

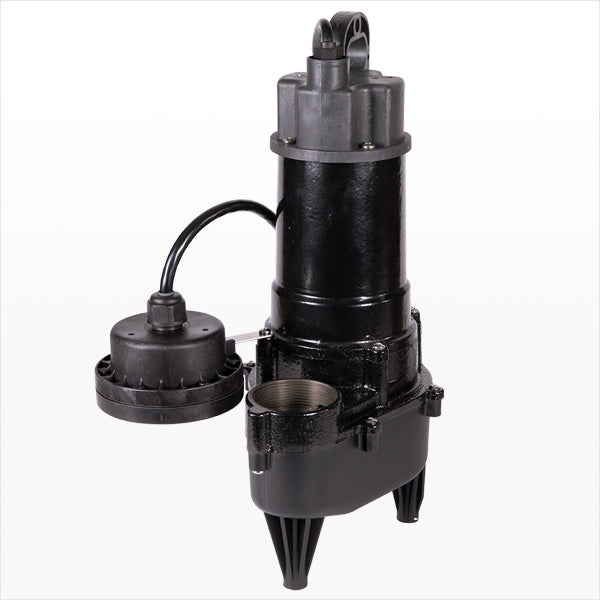

M5000A4107 (Ion Technologies) | Ion X-ONEi (1/2 HP) - All-in-One Pump
$482.45
Unit price
/
Unavailable
Taxes, discounts and shipping calculated at checkout.
StormPro X-Onei Submersible All In One Pump - 1/2 HP Pump - Ion Switch
3450 Rpm
Description
System Features
Specifications
Dimensions
Performance
| Ion Technologies | M5000A4107
3450 Rpm
Description
Submersible Sump-Effluent-Sewage Pump, 2" Discharge With 1-1/2" Reducer, 3450 Rpm With Built-In Overload. Automatic Operation Featuring a Piggyback 6" Range Ion Switch.
System Features
- Basement Sump
- Septic Tank Effluent
- Sewage Ejector
- Carbon Ceramic Mechanical Seal
- Oil-Filled Motor With Automatic Reset Thermal Overload Protection
- Upper And Lower Single-Row Ball-Bearing Construction
- Piggyback Ion Digital Level Control Switch Has no Moving Parts (standard)
- 3 Year Warranty
Specifications
| Typical Applications | &Nbsp; |
&Bull; Basement Sump &Bull; Septic Tank Effluent &Bull; Sewage Ejector |
| Maximum Capacity | &Nbsp; | Up to 80 Gpm |
| Maximum Head | &Nbsp; | Up to 21' |
| Electrical Data | 115 V, 1 Ø, 8.2 Fla, 60 Hz | |
| Motor Data | 1/2 Hp, 3450 Rpm | |
| Intermittent Liquid Temperature | 120° F | |
| Recommended Minimum Basin Size | 18" x 24" | |
| Automatic Operation | &Nbsp; | I: Ion Digital Level Control (Standard) |
| Manual Operation | &Nbsp; | M: Manual |
| Materials of Construction | &Nbsp; | Cast Iron And Engineered Thermoplastic |
| HP | 1/2 Hp | |
| PH | 1 | |
| Pump Config | &Nbsp; | Ion |
| Pump Weight | 24 Lbs | |
| Power Cord Length | 10' Standard | |
| Discharge | 2" With 1-1/2" Reducer | |
| Solids Handling | 1-1/2" to 2" |
