Ion Technologies  |  SKU: MHP20160iP

MHP20160iP (Ion Technologies) | Ion SHV40i+ (1/2 HP) - Sewage Pump w/ High Water Alarm

$77885
Taxes and shipping calculated at checkout.

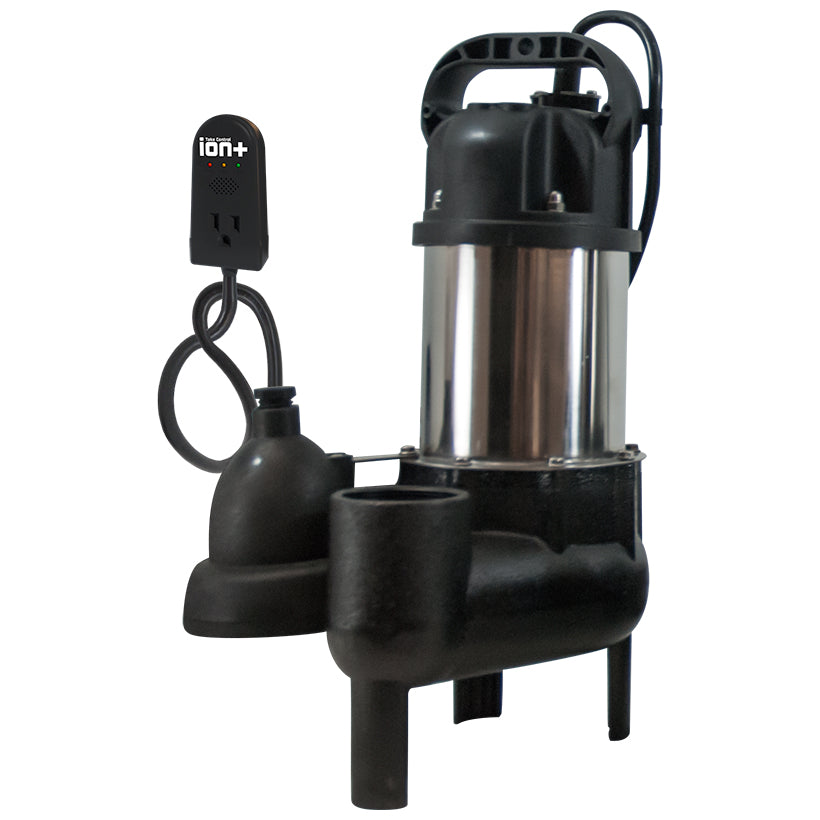

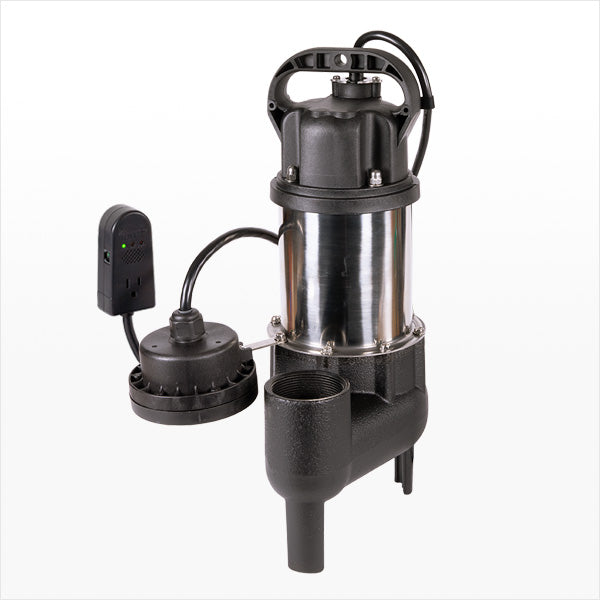

StormPro SHV40i Sewage Ejector Pump - 1/2 HP Pump - Ion Switch
3450 Rpm
Spec Sheet User Manual


Description

Submersible Cast Iron/Stainless Steel Sewage Ejector Pump, 3450 Rpm With Built-In Over Load. Automatic Operation Featuring a Piggyback 8.5" Range Ion Switch.

System Features

  • Light Commercial Sewage
  • Residential Sewage
  • High-Capacity Sump
  • Septic Tank Effluent
  • Carbon Ceramic Mechanical Seal
  • Automatic Reset Thermal Overload&Nbsp; For Maximum Protection
  • Lower Single-Row Ball-Bearing Construction
  • Piggy Back Ion Digital Level Control Switch Has no Moving Parts (standard)
  • 3 Year Warranty

Specifications

Typical Applications &Nbsp; &Bull; Light Commercial Sewage
&Bull; Residential Sewage
&Bull; High-Capacity Sump
&Bull; Septic Tank Effluent
Maximum Capacity &Nbsp; Up to 90 Gpm
Maximum Head &Nbsp; Up to 25'
Electrical Data   115 V, 1 Ø, 8.5 Fla, 60 Hz
230 V, 1 Ø, 4.3 Fla, 60 Hz
Motor Data   1/2 Hp, 3450 Rpm
Intermittent Liquid Temperature   130”œ»”¥”–‘ F
Recommended Minimum Basin Size   18" x 30"
Automatic Operation &Nbsp; I: Ion Digital Level Control (Standard)
Manual Operation &Nbsp; M: Manual
Materials of Construction &Nbsp; Cast Iron And Stainless Steel
HP   1/2 Hp
PH   1
Pump Config &Nbsp; Ion
Pump Weight   31 Lbs
Impeller &Nbsp; Cast Iron Vortex
Power Cord Length   20' Standard
Discharge   2"NPT
Solids Handling   2"

Dimensions


Performance

| Ion Technologies | MHP20160iP
