Ion Technologies | SKU:
MHP20172
MHP20172 (Ion Technologies) | SHV75M (3/4 HP) - Sump Pump
$696.78
Unit price
/
Unavailable
Taxes, discounts and shipping calculated at checkout.

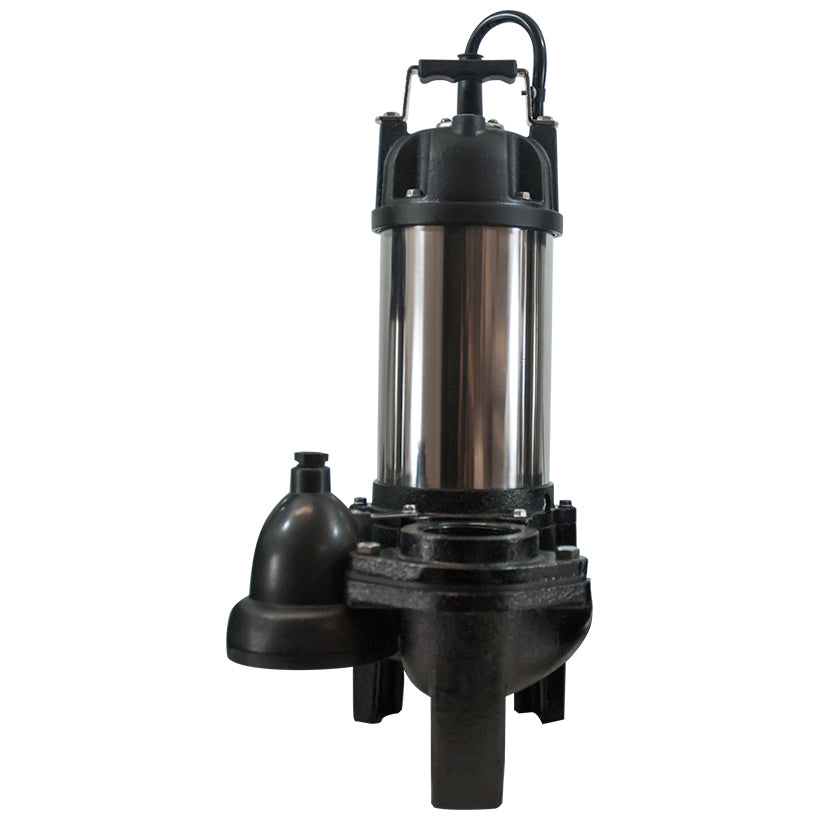

StormPro SHV75M Sewage Ejector Pump - 3/4 HP Pump - Manual Switch
3450 Rpm
Description
System Features
Specifications
Dimensions
Performance
| Ion Technologies | MHP20172
3450 Rpm
Description
Submersible Cast Iron/Stainless Steel Sewage Ejector Pump, 3450 Rpm With Built-In Over Load. Automatic Operation Featuring a Piggyback 8.5" Range Ion Switch. Optional 3" Discharge.
System Features
- Light Commercial Sewage
- Residential Sewage
- High-Capacity Sump
- Septic Tank Effluent
- Carbon Ceramic Mechanical Seal
- Automatic Reset Thermal Overload For Maximum Protection
- Lower Single-Row Ball-Bearing Construction
- Piggy Back Ion Digital Level Control Switch Has no Moving Parts (standard)
- 3 Year Warranty
Specifications
| Typical Applications | &Nbsp; |
&Bull; Light Commercial Sewage &Bull; Residential Sewage &Bull; High-Capacity Sump &Bull; Septic Tank Effluent |
| Maximum Capacity | &Nbsp; | Up to 120 Gpm |
| Maximum Head | &Nbsp; | Up to 28' |
| Electrical Data | 115 V, 1 Ø, 11.5 Fla, 60 Hz | |
| Motor Data | 3/4 Hp, 3450 Rpm | |
| Intermittent Liquid Temperature | 130° F | |
| Recommended Minimum Basin Size | 18" x 30" | |
| Automatic Operation | &Nbsp; | I: Ion Digital Level Control |
| Manual Operation | &Nbsp; | M: Manual |
| Materials of Construction | &Nbsp; | Cast Iron And Stainless Steel |
| HP | 3/4 Hp | |
| PH | 1 | |
| Pump Config | &Nbsp; | Manual |
| Pump Weight | 47 Lbs | |
| Impeller | &Nbsp; | Cast Iron Vortex |
| Power Cord Length | 10' Standard | |
| Discharge | 2"NPT (3" Optional) | |
| Solids Handling | 2" |
Dimensions
Performance
