Ion Technologies | SKU:
MPK20291

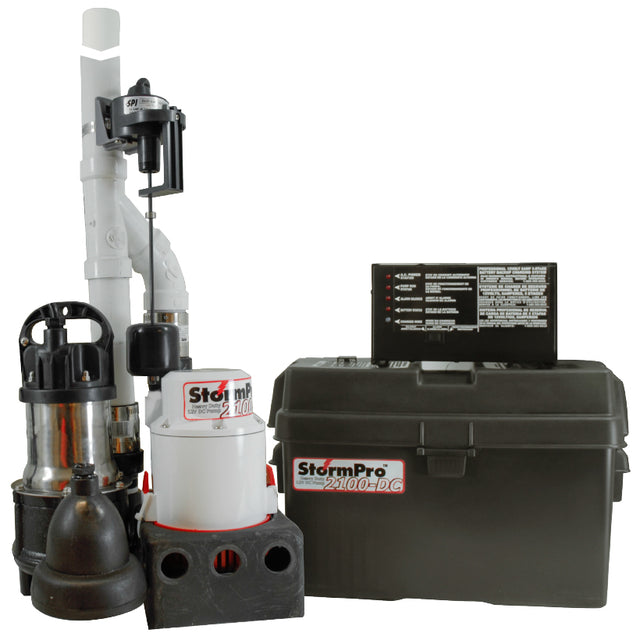

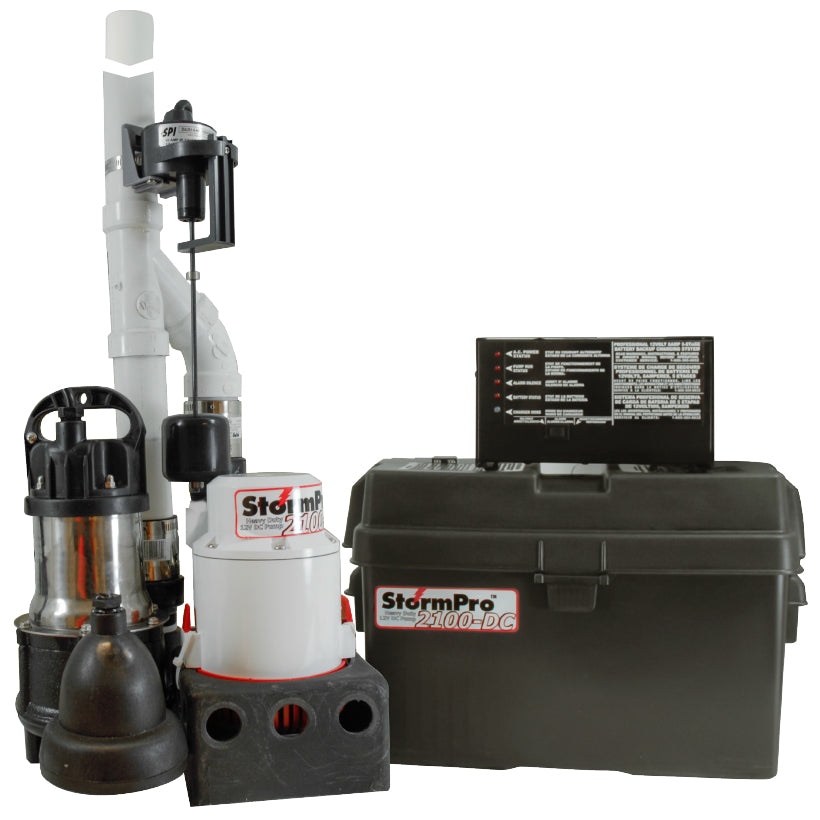

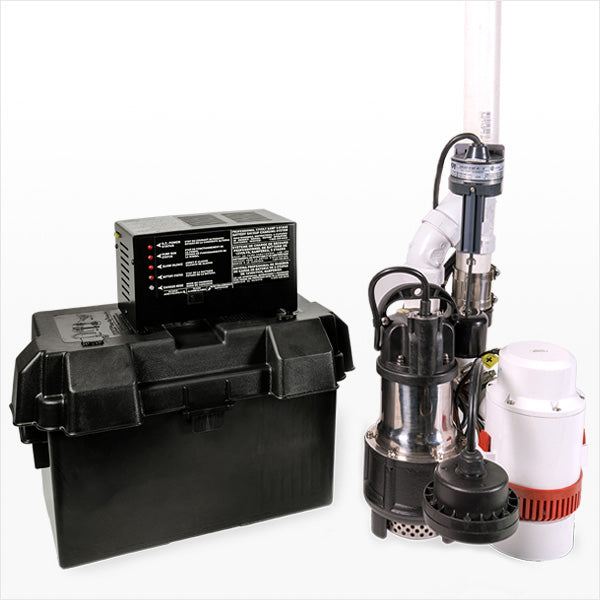

MPK20291 (Ion Technologies) | Ion JSPIII (1/3 HP) - Primary w/ Battery Backup System
$1,084.10
Unit price
/
Unavailable
Taxes, discounts and shipping calculated at checkout.
StormPro Jspiii Preassembled Sump & Battery Backup System - 1/3 Hp
3450 Rpm
Description
System Features
Specifications
Performance
Installation
| Ion Technologies | MPK20291
3450 Rpm
Description
JSPIII Package 8 amp/12 Volt Charger, Single Battery Box, Bilge Pump, Vertical Switch, BA33i, 1-1/2" Pvc Piping, Check Valves.
System Features
- All-In-One System With Primary And Backup Pump
- Comes Completely Assembled With Pumps And Valves Pre-Plumbed
- Simply Drop Into Your Existing Basin And Make One Discharge Connection
- Primary Pump With High Efficiency Oil Filled Motor That Uses Half The Power of Most 1/3 hp Pumps
- Piggyback Ion Digital Level Control Primary Switch With no Moving Parts
- High Quality 2100DC Battery Backup Pump Rated For 2,100 Gph
- Backup Pump Base Keeps The Pump Off The Bottom of The Basin to Avoid Clogging From Debris
- Heavy Duty Adjustable Vertical Backup Float Switch For Maximum Reliability
- Solid State 8 Amp Charger Unit With 5 Charging Stages Automatically Switches to DC Mode When Power is Out
- Built-In Audible Alarm And Indicator Lights on Charger For Added Protection
- Uses One 12 Volt Deep Cycle Agm Battery (Battery is Not included)
- 1.5" Sch. 40 Pvc Piping
- Check Valve on Each Pump And a Combination Valve on The Main discharge
- 3 Year Warranty
Specifications
Typical Applications | &Nbsp; |
&Bull; Basement Sump &Bull; Dewatering |
Maximum Capacity | &Nbsp; | Up to 68 Gpm |
Maximum Head | &Nbsp; | Up to 25' |
Electrical Data | 115 V, 1 Ø, 4.5 Fla, 60 Hz | |
Motor Data | 1/3 Hp, 3450 Rpm | |
Recommended Minimum Basin Size | 18" x 24" | |
Automatic Operation | &Nbsp; | I: Ion Digital Level Control |
Materials of Construction | &Nbsp; | Cast Iron & Stainless Steel |
HP | 1/3 Hp | |
Pump Weight | 48 Lbs | |
Power Cord Length | 10' Standard | |
Discharge | 1-1/2"NPT | |
Solids Handling | 1/2" |
