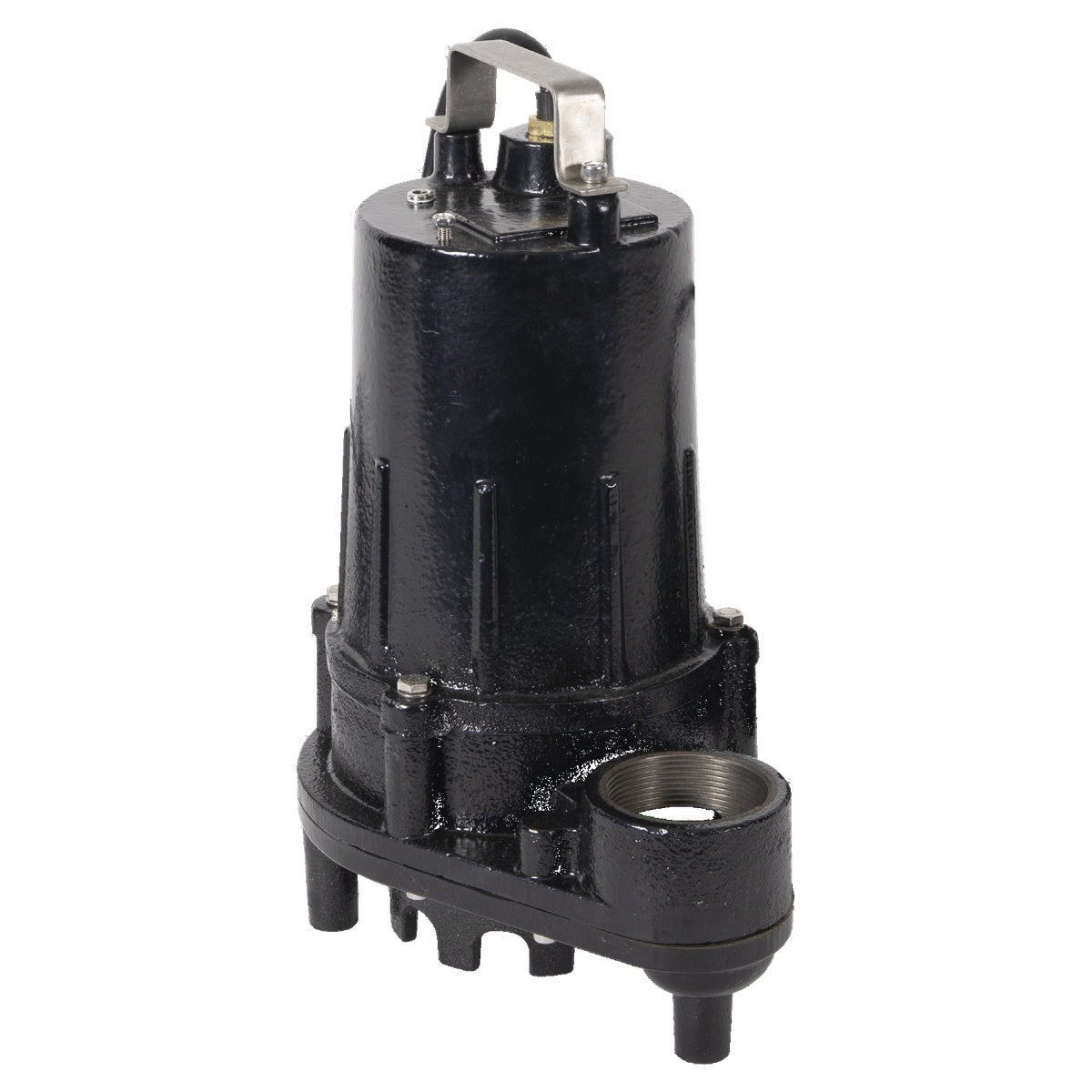

MTW20443 (Ion Technologies) | ES45M (1/2 HP) - Effluent Pump

Ion Technologies ES45m Effluent Pump - 1/2 HP Sump Pump - 20' Cord - Manual Switch
3450 RPM

Description

Submersible Cast Iron / Stainless Steel Residential Sump Pump, 3450 RPM With Built-In Overload.

---

System Features

• Carbon ceramic mechanical seal
• Automatic reset thermal overload for maximum protection
• Lower single-row ball-bearing construction
• Ion® digital level control piggyback switch has no moving parts (standard)
• 3 year residential warranty

---

Specifications

Typical Applications		• Septic tank effluent • Dewatering • High head sump
Maximum Capacity		Up to 90 GPM
Maximum Head		Up to 42'
Electrical Data • ES45M1 • ES45M21		115 V, 1 Ø, 11 FLA, 60 Hz 230 V, 1 Ø, 5.5 FLA, 60 Hz
Motor Data		1/2 HP, 3450 RPM
Intermittent Liquid Temperature		104° F
Recommended Minimum Basin Size		18" x 30"
Automatic Operation		i: Ion Digital Level Control (standard) W: Wide angle float
Manual Operation		M: Manual
Materials of Construction		Cast iron
Impeller		Cast iron vortex
Power Cord		SJTW 16/3C-20'
Discharge		2" NPT
Solids Handling		3/4"

---
