Ion Technologies  |  SKU: MPK20291

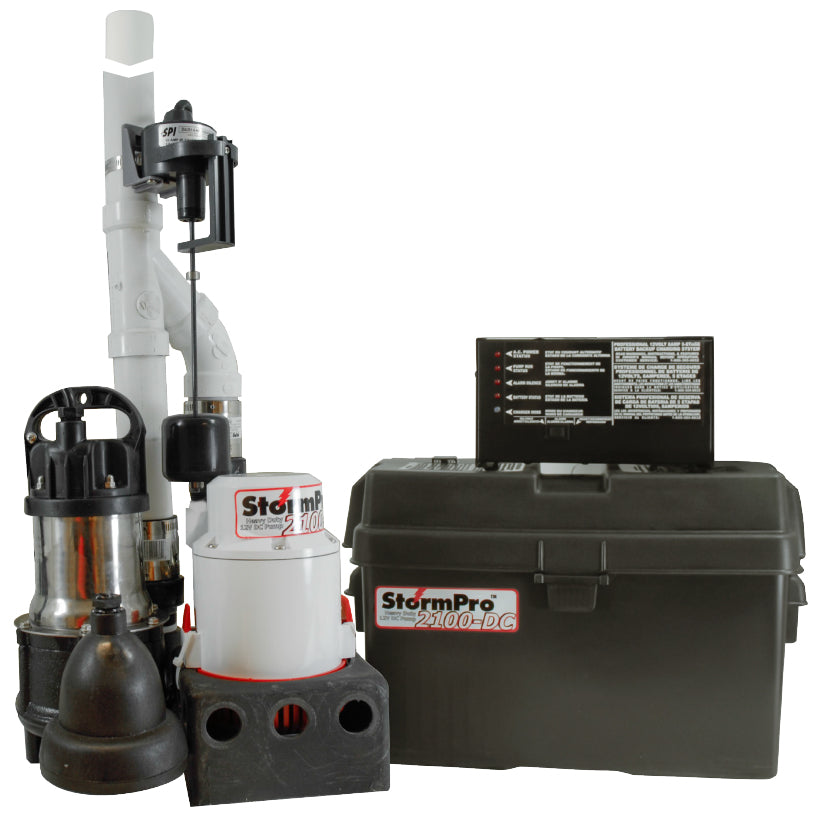

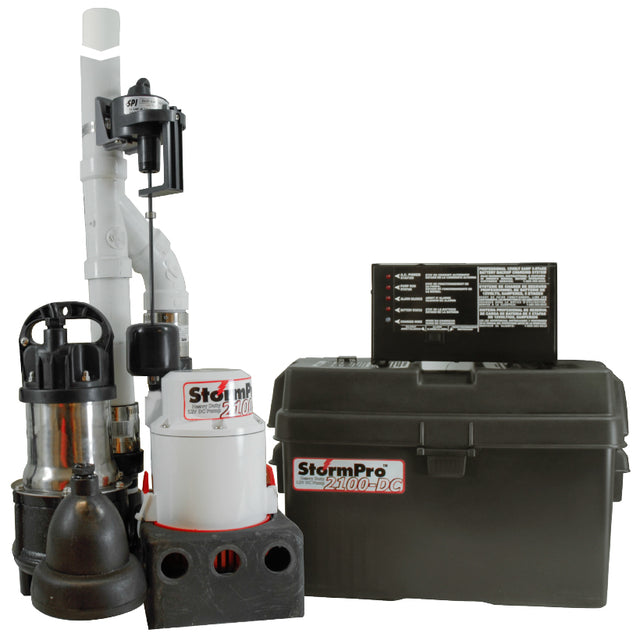

MPK20291 (Ion Technologies) | Ion JSPIII (1/3 HP) - Primary w/ Battery Backup System


$1,084.10
Taxes, discounts and shipping calculated at checkout.

StormPro Jspiii Preassembled Sump & Battery Backup System - 1/3 Hp
3450 Rpm

Description

JSPIII Package 8 amp/12 Volt Charger, Single Battery Box, Bilge Pump, Vertical Switch, BA33i, 1-1/2" Pvc Piping, Check Valves.




System Features

  • All-In-One System With Primary And Backup Pump
  • Comes Completely Assembled With Pumps And Valves Pre-Plumbed
  • Simply Drop Into Your Existing Basin And Make One Discharge Connection
  • Primary Pump With High Efficiency Oil Filled Motor That Uses Half The Power of Most 1/3 hp Pumps
  • Piggyback Ion Digital Level Control Primary Switch With no Moving Parts
  • High Quality 2100DC Battery Backup Pump Rated For 2,100 Gph
  • Backup Pump Base Keeps The Pump Off The Bottom of The Basin to Avoid Clogging From Debris
  • Heavy Duty Adjustable Vertical Backup Float Switch For Maximum Reliability
  • Solid State 8 Amp Charger Unit With 5 Charging Stages Automatically Switches to DC Mode When Power is Out
  • Built-In Audible Alarm And Indicator Lights on Charger For Added Protection
  • Uses One 12 Volt Deep Cycle Agm Battery (Battery is Not included)
  • 1.5" Sch. 40 Pvc Piping
  • Check Valve on Each Pump And a Combination Valve on The Main discharge
  • 3 Year Warranty


Specifications

Typical Applications &Nbsp; &Bull; Basement Sump
&Bull; Dewatering
Maximum Capacity &Nbsp; Up to 68 Gpm
Maximum Head &Nbsp; Up to 25'
Electrical Data   115 V, 1 Ø, 4.5 Fla, 60 Hz
Motor Data   1/3 Hp, 3450 Rpm
Recommended Minimum Basin Size   18" x 24"
Automatic Operation &Nbsp; I: Ion Digital Level Control
Materials of Construction &Nbsp; Cast Iron & Stainless Steel
HP   1/3 Hp
Pump Weight   48 Lbs
Power Cord Length   10' Standard
Discharge   1-1/2"NPT
Solids Handling   1/2"


Performance



Installation
